The Flyway Add Command Explained Simply

—
This article is part of the Flyway Command series
—

Why is the add command useful?

The add command is used to create a new, empty migration script that follows the naming convention of your existing migrations and has the correct version number. At first glance, you might wonder why you’d need a specific command just to create a new migration file. Surely, a quick look at the files in the migration directory and their version numbers will tell you what the next one should be called? However, this can become a much bigger chore in larger Flyway projects with multiple directories and more complex versioning.

Flyway add becomes especially useful when you’re automating parts of the development workflow. For example, you might want to create a process that creates a new feature branch in response to a ticket, automatically adding the next migration file with the correct version and a description based on the ticket ID. Or perhaps a developer wants to generate the next migration directly from their code editor, without having to check the folder structure or versioning.

If you try to script this by hand, you might find that it’s surprisingly complicated. Flyway add does the hard work for you.

How Flyway Add works

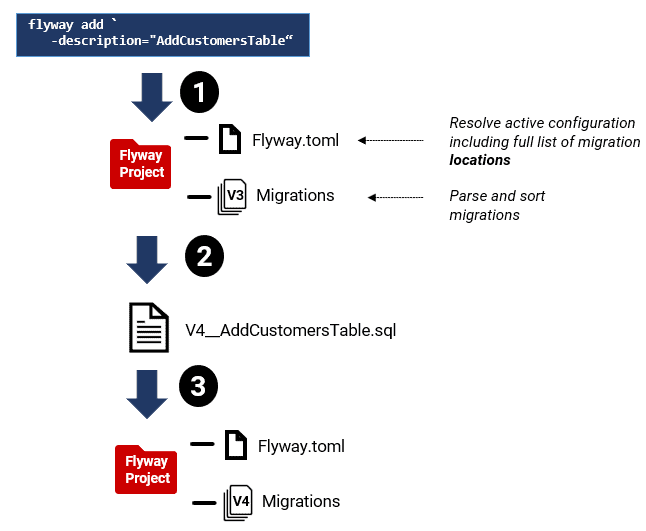

To illustrate some of the hard work that the flyway add command is doing for us, under the hood, we’ll step through a simple example. We’ll cover the syntax in more detail later, but for now, we run the command with just a description of the new file we want to add, chosen carefully because it’s used in the filename and appears in Flyway logs and notifications:

1. Locate and sort existing migration files

Before Flyway can create a new migration file, Flyway must assess the existing set of migration files. This required several steps.

• Determine the full list of locations
  Flyway checks your configuration files, environment variables, and command-line parameters to resolve the active configuration, and work out where to find (and potentially place) migration files.
• Scan all locations recursively
  It searches through all specified directories, including subfolders, and will pick up any migrations that follow the configured naming conventions.
• Parse and sort migration files
  Flyway identifies the type and version of each migration, then sorts them to determine the correct next version number.

If you had to script all of this yourself, it’s complex because Flyway currently offers no built-in way to retrieve the final, resolved list of locations (there’s no built-in FLYWAY_LOCATIONS environment variable). Tracking Down Object Changes in Flyway Migration Files explains this process in detail and offers a workaround using Flyway’s debug output, though it’s far from ideal.

2. Name the new file, assigning the correct version number

Flyway add ensures that the new file follows the correct naming convention for the type of migration and has the appropriate version number, whereas there is some parsing, sorting and checking to do if we needed to script it by hand.

Flyway migration files follow a strict naming convention, as follows:

<type><version>__<description>.<ext>

• type – indicates a migration type of V (Versioned), U (Undo), R (Repeatable), or B (Baseline)
• version: the schema version number (e.g., V1.1), applicable to versioned, undo, and baseline migrations
• description: Follows a double underscore (__) and must use only letters, numbers, and underscores
• file extension: according to the migration file format (.sql, .ps1, .cmd, .sh, .py, etc.)

In this example, we specified neither the -type of file nor a -version, so by default Flyway add will create a versioned (V) SQL migration file, and assign the next version number automatically, based on the naming convention of your existing migrations and the detected increment.

Currently, flyway add assumes you want a SQL migration. If you need a .ps1, .sh, .bat or other script type, you can either:

• Adjust the extension of the generated file manually, or
• Set the -nameOnly parameter to true so that Flyway outputs only the intended path/filename. Then create the file yourself with the right extension.

3. Create and save the new file

Finally, Flyway add will create and save an empty migration file, correctly named and versioned. Unless we specify a location, Flyway will save the new file in the default file location as specified in the configuration (the first filesystem location listed in flyway.locations). Otherwise, we can specify where we want the new file to appear, perhaps the one where the most recent migration lives, using the -location parameter.

Flyway’s add command in action

As you can probably tell by now, it’s convenient to have the option of letting Flyway handle all the hard work of creating migration files. With a few parameters, you can control exactly what kind of file gets created and where.

To use flyway add, you must run the command from your Flyway project directory, so that it can load the project configuration, resolve the migration locations, scan existing files, and with this information assign the correct next version number. However, if you prefer to specify the version yourself, just supply it via the -version parameter and Flyway will use it, assuming it doesn’t clash with an existing file:

The result is an empty file called V2.3__AddDiscountColumn.sql, saved in the first filesystem location in flyway.locations. If you want to save it somewhere else (e.g., a specific branch folder), you can use the -location parameter:

What if you want to create an undo, repeatable or baseline file instead of a versioned one? Just specify the type:

If you only want to get the filename without creating the file, use the –nameOnly parameter:

This gives me the option to generate the correct file reference and then create the file directly from my programmer’s editor. Let’s see how that works in practice.

Automating the creation of the next Flyway migration

There are times when you want to automatically create a correctly named and versioned ‘template’ for the next migration. It might be part of a process to spin up a new hotfix branch in response to an urgent bug. Or one that generates a Flyway migration from the output of a table designer or an ER Diagramming tool. The Ops team might want to do it in Staging, to add the production-only DCL code.

Here, I’ll demo the simple case of a developer like me, who prefers to keep as much of their work as possible inside their programmer’s editor, and wants to create the next migration from there, ready for coding, without the chore of hunting through directories working out what to call it.

We’ll start with a basic method that pipes the output of flyway add into your editor. Then, I’ll show how to wire up a PowerShell helper script that handles all Flyway’s location and configuration details and runs the correct flyway add command, in the background, so you can generate the next migration with a single keystroke, directly from your editor window.

Piping the correct filename into your programmer’s editor

Using the -q (quiet) and –nameOnly options, we can retrieve just the name of the new file from Flyway add and then then pass it easily to most code editors. Here’s a simple example using PowerShell (the Flyway project folder must be your current working directory):

Alternatively, you could use DOS batch , invoking, say, Notepad. This example opens the newly created file in Notepad. Replace notepad with another editor such as VS code, as needed.

For Python you might do this:

Creating new migrations directly from your editor

You might have spotted the limitation of the simpler approach: when working in a programmer’s editor, you’re often editing files within a specific migration folder, not from the project root. If you run flyway add from the wrong location, it will not resolve the configuration correctly.

That’s where a PowerShell helper script can make life easier. I use one called CreateAnEmptyFlywayMigrationFile.ps1. It works out where the project root is, identifies the current branch, resolves the correct location from the Flyway config, and runs the appropriate flyway add command. The result? A correctly named and placed migration file opens directly in your editor.

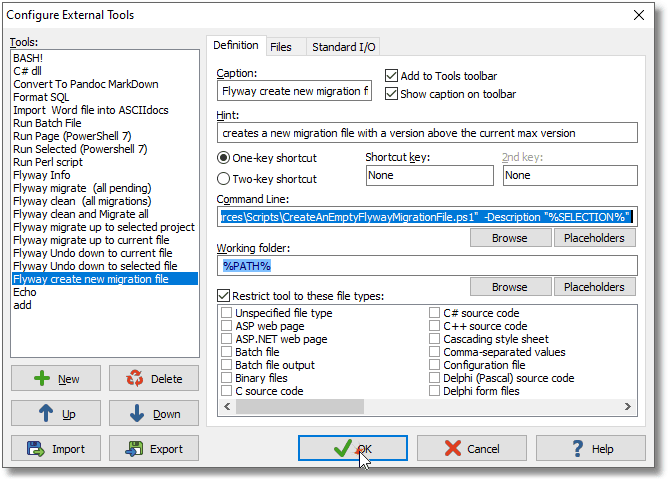

You install the helper script into our text editor and trigger it with a keyboard shortcut or menu item. In my case, I’ve configured a new tool in EditPad called “Flyway create new migration file“. It uses EditPad’s %SELECTION% macro so that the -description parameter picks up whatever text I’ve highlighted at the time:

Here’s the command I configured in the tool. Of course, you’ll need to adjust <path to> to reflect the actual location of your script:

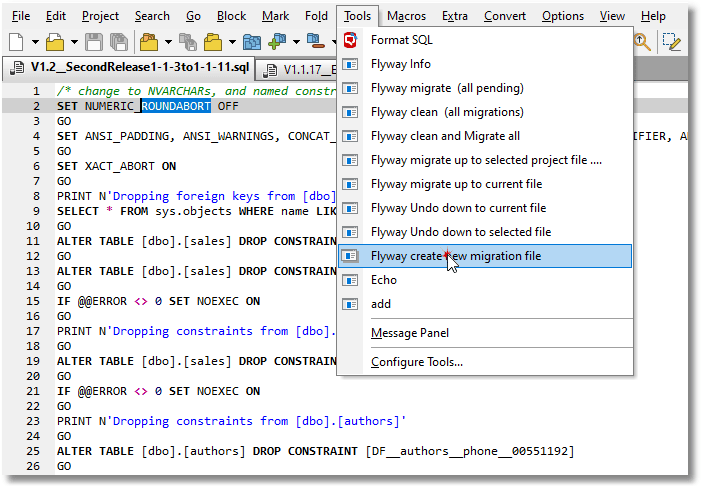

To use it, I simply highlight a word in any open file, say, ROUNDABORT, and invoke “Flyway create new migration file” from the Tools menu or a shortcut key.

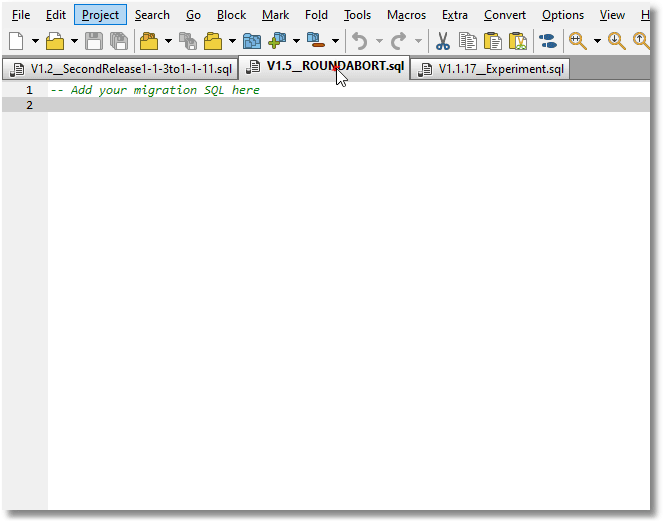

Flyway generates the next migration file, names it correctly using the current version sequence, and opens it right in my editor, ready appears ready for tapping in the SQL code:

How the PowerShell helper script works

In my project layout, the Flyway project root is always an ancestor of the migration file’s path. So as long as your current directory, i.e., where you’re working in your code editor, is somewhere inside the project structure, the helper script can ‘walk up the path’ to find the root project/branch directory, make that the working directory (and you could easily adapt the logic to fit whatever file structure you use). From there, it constructs the appropriate flyway add command using any supplied parameters, resolves the correct output location based on the active configuration, and opens the newly created migration file in your code editor.

I’m using EditPadPro, but integrating Flyway with most code editors is straightforward. If yours can execute DOS commands, as most can, then it can probably also run external scripts or commands. You just need to ensure PowerShell can find the right version of Flyway, either by manually updating the PATH variable, or by setting the ‘Flyway’ alias to point to it, using a script saved in your PowerShell profile.

Here is the full code for the helper script. Once installed into your code editor, you can use it to get Flyway to create a correctly-named migration file that then appears directly within your editing window, as demonstrated above. It would be easy to extend it so that it provides your SQL Header to the file, but this is a matter of personal preference.

Conclusions

The parts of Flyway I like best are the ones that allow you the freedom to work the way you want, that adapt to your team processes, rather than the other way around. The Flyway CLI is like that. It accommodates a wide range of users and development styles, and the add command is a great example: it just makes more things possible.

So why not, I ask myself, use this with the generate and snapshot commands to automatically create all my UNDO files automatically? This way I can check through them, tidy them up, test them and add them to the migrations when they’re ready. You might even do this in a feature branch as part of your development work, and later retrospectively fold it into a clean, orderly migration.

That’s what makes Flyway CLI so useful. It gives you open-ended commands like this that support structure and automation, when you need it, but don’t insist you change the way you work.
