The Dangers of using Float or Real Datatypes

Floating point datatypes accommodate very big numbers but sacrifice precision. They are handy for some types of scientific calculations, but are dangerous when used more widely, because they can introduce big rounding errors.

Guest post

This is a guest post from Phil Factor. Phil Factor (real name withheld to protect the guilty), aka Database Mole, has 30 years of experience with database-intensive applications.

Despite having once been shouted at by a furious Bill Gates at an exhibition in the early 1980s, he has remained resolutely anonymous throughout his career.

He is a regular contributor to Simple Talk and SQLServerCentral.

There is an old joke about floating-point arithmetic:

“If I cut a cake in three, each piece is 0.33 of the cake. If I stick all three pieces back together that gives me 0.99 of the cake. Where has the rest of the cake gone?”
— “Simple. That’s the little bit stuck on the knife”

Floating-point arithmetic is all about tolerating and managing approximation in order to avoid overflow errors in calculations. In the real world, we usually care about precision in numbers and will, instead, sacrifice space and resources in order to avoid overflow.

Whereas science works happily within a margin of error, precision matters in business accounting. When I was a cub programmer, I once wrote what I thought to be a perfectly suitable way of calculating the profit of stockbroker deals. In a million pounds, it was a penny or two out at the most. I was well-pleased. It used the calculations inherent in the PL/1 compiler that we used at the time to develop financial packages. I showed them the finely crafted application, and they were horrified. A penny out in a million pounds seemed to the hardboiled city traders to be reckless. They wouldn’t have it. I was forced to write a binary-coded-decimal (BCD) package in assembler code that was precisely accurate.

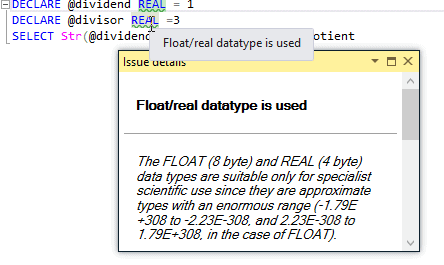

SQL Prompt has a code analysis rule (BP023) that will alert you to the use of FLOAT or REAL datatypes, due to the significant inaccuracies they can introduce to the sort of calculations that many organizations will routinely perform on their SQL Server data.

Approximate-number data types

Floating-point arithmetic was devised at a time when it was a priority to save memory while giving a versatile way of doing calculations that involved large numbers. Although it is still useful for many types of scientific calculations, particularly those that conform to the double-precision IEEE 754 standard for floating point arithmetic, it is, of necessity, a compromise. The clue is in the name of this type of data and arithmetic: ‘approximate’. Floating point numbers cannot accurately represent all real numbers: additionally, floating point operations cannot accurately represent all arithmetical operations. However, the range of magnitude of the number that they can hold is far greater than is possible in other numeric types, even if it isn’t always accurately held.

The problems that arise from use of floating-point calculations are due to round-off during complex calculations, and are most often seen if the data is ‘ill-conditioned’, so that small changes in input are magnified in the output. The inaccuracies are far less apparent with increased precision of the representation of the numbers, but they are still present, nonetheless. There are also some esoteric restrictions in the use of numbers that are valid but can’t be represented in floating point, such as tan(π/2), but these are likely to excite only mathematicians.

SQL Server floating point datatypes

The SQL Standard has three floating point, approximate data types, REAL, DOUBLE PRECISION and FLOAT(n). SQL Server conforms to this except it has no DOUBLE PRECISION datatype, using FLOAT(53) instead. The FLOAT(24) and FLOAT(53) datatypes corresponds to Binary32 (Single) and Binary64 (double) in the IEEE 754 standard, and are stored in 4 and 8 bytes, and 7 and 16 digits held, accordingly. They are useful when it is important that calculations produce the same result as an application using the .NET framework that also uses IEEE 754. The double precision type is also required when numbers exceed in their magnitude the maximum allowed by the DECIMAL datatype (38 digits) though with loss in precision. Approximate numbers cannot, of course, be reliably used in any test of equality, such as a WHERE clause.

Calculations using the REAL datatype (single precision)

I will try out the REAL datatype. The FLOAT(24) datatype, or smaller, reacts the same way. The first thing to remember when experimenting with floating point numbers in SQL Server is that SSMS renders a floating point number in a way that disguises small differences. For example:

…gives 0.1

To see more accurately what value is stored in a floating point number, you have to use the STR() function, specifying the precision you actually want.

Already, this is alarming. We are, after all, dealing with data with millions of rows so small errors will stack up unless, like ‘bankers rounding’, they average out. That error is already close to the ‘penny in a million pounds’ (1/ 240000000) that I mentioned in the introduction!

Let’s avoid 0.1 and put it down to a freak of floating point. How about dividing 1 by 3. Surely this couldn’t be a problem?

Oops. It got it wrong. OK, it is a tiny error but remember my story about the bankers. An answer is either right or it is wrong, there are no shades of grey for the men in grey suits. In business school, there is only a tick and a cross. No sign that means ‘near enough’.

A simple test is to divide one by numbers from one to twenty. What could go wrong?

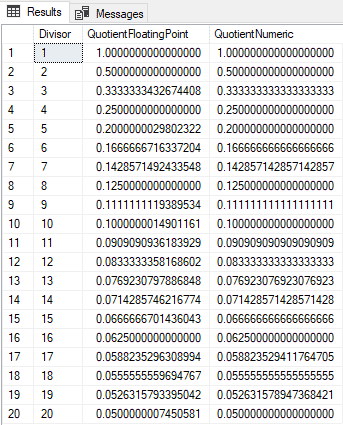

We can store the results of the floating point and numeric calculation, both converted to strings and we then compare the strings (be warned that STR() can put in a leading space which makes for a complication).

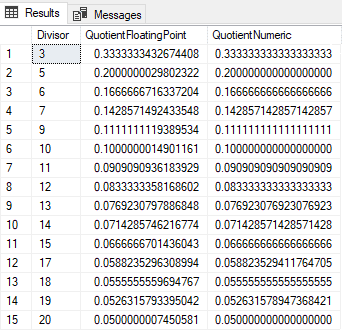

Now, what if we list the rows where the numbers don’t match?

Ugh! Only where the divisor was 1, 2, 4, 8 or 16 was there a correct result.

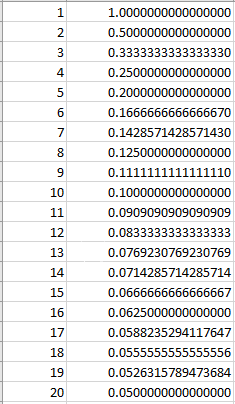

In case you are hoping that somehow the float was accurate, and the numeric version wasn’t, here is the numeric quotient calculated in Excel:

Calculations using FLOAT(25) or over (double precision)

If you use double precision floating point, FLOAT(25) or over, the tests are all passed, because of the STR() function allows a maximum of sixteen places to the right of the decimal point. If there are more than 16 then the result is truncated. The double precision datatype has sixteen digits, whereas the single precision datatype has seven. You’ll also have seen that the single precision datatype gets the first seven digits right. Likewise, the double-precision gets the first sixteen digits right. We can just broaden the number to see the approximation.

That fractional part has vanished, hasn’t it? It is probably only a tiny difference, but in some calculations, it can cause problems.

Conclusion

Floating point arithmetic is fast and economical on storage but provides an approximate result. It is suitable for well-conditioned scientific applications but not for financial calculations, which demands that a number is either ‘right’ or ‘wrong’. It also has the extra disadvantage in a database because you cannot reliably and consistently test two approximate numbers for equality.

It is not correct to say that you should never use floating point numbers in SQL datatypes or in arithmetic. Approximate types are there in the SQL standard for a purpose. I would nowadays always stick with the double precision floating-point datatype in SQL Server, where there is a suitable requirement. They are great for such purposes as modelling weather systems, or plotting trajectories, but not for the types of calculations for which the average organization is likely to use a database.

If you spot erroneous use of these types, then you should switch to a suitable DECIMAL/NUMERIC type instead. If you know you need floating point arithmetic and can explain why, then you probably know enough to avoid the pitfalls of floating point, such as the one that occurred in the famous Patriot missile failure that led directly to 28 deaths.

  • Joe Celko

    Originally REAL, FLOAT and DOUBLE PRECISION data types were very different from today. There was no IEEE standards, so each vendor was a little different. While we tried to define things in an abstract way without references to a phyical implementation. But we knew that REAL was for those products that used base 10 and FLOAT and DOUBLE PRECISION were binary.

    • –Jeff Moden

      No pun intended but it’s a REAL shame that that idea wasn’t carried forward in SQL Server, Joe. Thanks for bringing it up.

  • brantam

    There are plenty of financial amounts and calculations for which floating point numbers do make sense. Any applications where projected or weighted financial amounts are used for example (cashflow projections, valuations, financial risk, actuarial calculations). In financial services, especially investment banking, asset management and insurance you will find floating point types are often used in databases for good reason, and I don’t just mean in MS SQL Server. Floating point numbers mean you can preserve decimal precision in calculations because they don’t get rounded each time they are stored; they work across different languages and software without conversion; they also typically perform better than fixed precision equivalents.

    • Phil Factor

      Yes, I’d certainly agree with that, because your examples only require close approximations. Maybe it would have been better for the explanation to refer to financial accounting rather than just ‘financial’ (I worked mostly for Investment banks). If one is giving simple general advice I think you’d have to add that if thew application requires floating-point numbers one should also always stick with the double precision floating-point datatypes in SQL Server because these are far less error-prone and they are compatible with .NET

  • So we’ve proved that Float is precise up to 7 digits if using “small” floats, and up to 15 digits if using large floating point types. Isn’t that exactly what the manual mentions? What’s the actual danger (other than the old RTFM rule)?
    https://docs.microsoft.com/en-us/sql/t-sql/data-types/float-and-real-transact-sql?view=sql-server-ver15

    • Phil Factor

      If everyone read the flaming manual thoroughly before cutting code, then one would need very few of these code analysis rules. Floating point numbers work very well in SQL Server if you understand their limitations. I used them for a job the other day without a twinge of guilt. However, I’d still feel that it is right to explain the drawbacks of using approximate numbers and particularly the problem of using floating point numbers with ‘ill-conditioned’ data, so that small changes in input are magnified in the output. Many statisticians have come to grief over that problem when calculating correlations in particular.

      • Fair enough. The person modeling the content should be articulating those behaviors with their core constituency, but absent that, having an article such as this might help lead the end-users to what might be the issue.
