Inline PDF Viewer in an Angular App? Now you can

This article by Aneesh Lal Gopalakrishnan describes the easiest way to integrate an inline pdf viewer into an angular application.

PDF and web have never been friends — so much so that most users always download a PDF before viewing it. This has changed a lot in recent years. Browsers do support the viewing of pdfs in separate tabs nowadays. For most use cases, downloading plus the ability to show a PDF in a tab would suffice.

But, developers have been hungry. They wanted to show the PDF inside their website so that users could view and sign them, read them like a book, and so on. In short, a better user experience was lacking when users were forced to download a PDF or open it in a separate tab/window. This created the need for a PDF viewer which can be easily integrated into Angular. There were a lot of small and partial solutions arising in this space, yet none was available for Angular developers.

Angular developers like myself have suffered greatly due to a lack of a quality library that can be used to show a pdf without losing the user experience.

Enter ng2-pdfjs-viewer, and the Angular developer’s fight with PDF is over!

The ng2-pdfjs-viewer component is built on top of Mozilla’s viewerjs and pdfjs, so its core is solid. It does have easy-to-use attributes along with the ability to customize anything which pdfjs supports. You can find the code demonstrated in this article here.

Usage can be as simple as

And viola, the PDF sits right inside the Angular application like this:

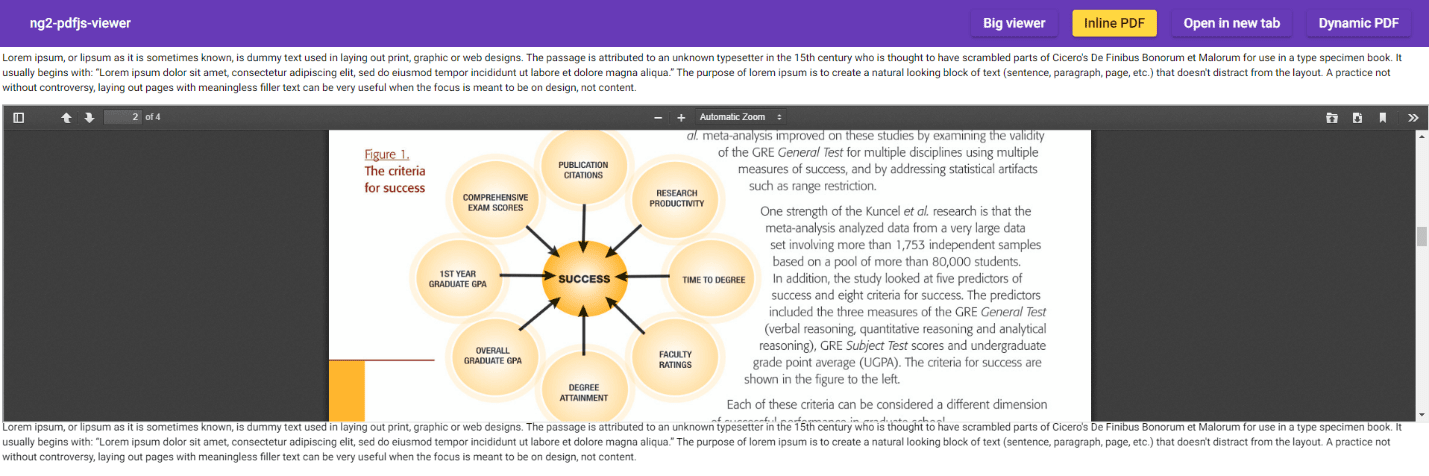

An image showing the ng2-pdfjs-viewer with a sample PDF file

Now the question is – what else can I get out of it?

Here are some examples. Suppose you wanted to show two versions of the same document for comparison side by side in your web application. Now you can. Do you want to open the PDF in a separate browser window for traditional viewing? No problem. Do you like to show a print preview dialog automatically after opening the PDF in a new browser window? Piece of cake. Automatically download the pdf? Got it.

This pdf viewer supports tons of other features, and you have fine control of what to do with it.

Setup ng2-pdfjs-viewer in an Angular App

Follow these steps to set up the component:

1. Installation – Like any other package – get it from the npm registry

This is a standard npm package installation command. Make sure it gets installed in dependencies using the --save parameter.

2. Configuration – Let your app know you would like to use it

Set it up in your angular AppModule:

As shown here, the module to be imported is PdfJsViewerModule; this is required as this is the module that makes sure ng2-pdfjs-viewer is ready to be used.

It is equally important to add the module PdfJsViewerModule into the imports section of @NgModule. With this step, you are almost ready to use the inline PDF viewer.

3. Build – Add a build step, so that your angular app has a copy of pdfjs

The ng2-pdfjs-viewer component is built on top of pdfjs, which also means that it’s needed for this angular component to work properly. There are several ways this can be achieved, from the manual process of copying relevant files to automated build scripts. Here are the two most popular mechanisms angular developers use when they need extra files to be copied as part of the build step.

Either add an angular build step into angular.json:

Or use webpack or similar bundlers (Hmm, are you still using webpack?)

PDF Loading Events

Often, you might like to tap into the PDF pipeline of printing or loading to execute a task. This could be to show a message to the user that the PDF is loaded for large PDFs or that the PDF is successfully printed, etc. The code found here provides several events hooks for that.

HTML

For events to work properly, you should set viewerId. This helps event routing understand which component the event is to be sent to, even if there is more than one ng2-pdfjs-viewer component on the page. viewerId should be a unique id (like a guid).

Angular component

Once capturing these events, developers can execute custom tasks/code to take action based on these events. Given below is an event which emits and displays a number of pages in PDF.

You can see the events that are emitted on the developer console as shown below.

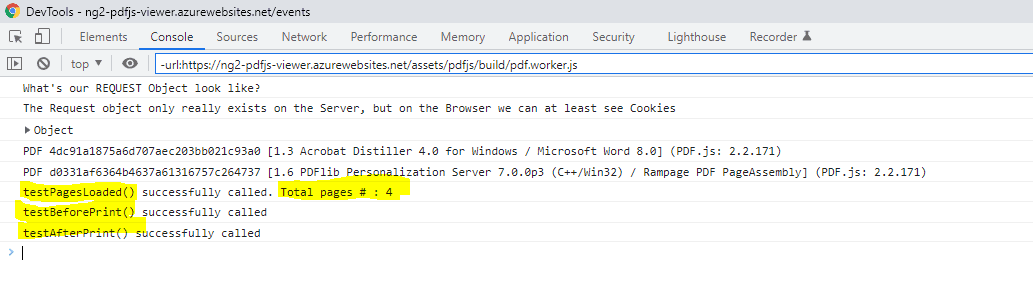

Image showing screenshot of DevTools. Important part highlighted: testPagesLoaded Total Page #4. TestBeforeProject, TestSfterPrint

What about PDF files returned from an API?

The ng2-pdfjs-viewer component can also work with other server-side APIs to render returned PDFs. To get this going, you would convert the PDF into a byte[] array or blob and give it to the viewer.

A bit of HTML in an Angular component

Notice the #pdfViewer. This is your reference.

Some download code

The downloadFile() function calls the API; you may use any HTTP querying mechanism here. The requirement is that the API endpoint returns the pdf as a byte array.

A sample API using C# and ASP.NET Core

I used ASP.NET Core and some C# here. Don’t worry; you can do this in Python or Ruby or whatever server-side technology you prefer, or any APIs supplying pdf through HTTP endpoints.

Wrap up

The ng2-pdfjs-viewer component is a powerful tool to display PDF files without losing the user experience. If you are a student programmer who is building a pdf book library angular app or an enterprise programmer who wants to display a PDF stored away somewhere in SharePoint, this library is useful. The ability to show more than one PDF on the same page also helps with the comparison of different versions of a document. More on that later!
