The TSQL of CSV: Comma-Delimited of Errors

Despite the neglect of the basic ODBC drivers over the years, they still afford a neat way of reading from, and writing to, CSV files; and to be able to do so in SQL as if they were tables is somewhat magical. Just to prove it is possible, Phil creates a CSV version of AdventureWorks as a linked server.

Introduction

This article is about using ‘Comma-Separated Values’ (CSV) format in SQL Server.  You’ll come across CSV if you’re  a SQL Server developer when you are importing, or exporting, tabular data from ‘foreign’ applications, data feeds, or the wilder fringe of databases. Exporting via CSV is useful, since CSV is generally supported by even the most archaic legacy systems. We’ll  demonstrate a few tricks such as that of saving the tables and views of AdventureWorks to CSV format, parsing a CSV file to a table, converting CSV  to XML and JSON and so on.

Although we’ll cover some of the many ways of manipulating CSV in this article, we’ll be concentrating more on using ODBC, since it is pretty fast, versatile, and reliable, and is easy to access from TSQL.

The CSV Format

There is nothing much wrong with the CSV file format, beyond the neglect it suffers. It’s been around far longer than MSDOS. When properly implemented, It is the most efficient available way of representing the contents of a data table in a readable document, and is therefore very effective in transferring such data between different applications or platforms. Unlike JSON or XML, it is designed for the single purpose of representing tabular data. It doesn’t do hierarchical data, and it was designed assuming that both ends of the data transfer process understood what each column represented, as well as the data type, collation and character set being used.  If it is done properly, it can transfer any type of tabular data reliably.

We come across CSV files in SSIS, Excel, ODBC, SQLCMD and even in PowerShell.  A Faulty implementation, nicknamed ‘comedy-limited’, exists in BCP. The term ‘CSV format’ is not the correct description of the practice of using commas or other ‘special’ characters,  to separate data elements in some lists, this generally applies only to ‘private’ data where there is a guarantee that the delimiting character does not appear within the data.

If CSV transfers fail, it is generally because of mistakes in the implementation. RFC 4180 gives a good description of what it is supposed to do. It is easy to describe:

Each row, or tuple, is separated by a linefeed, and the last line can be terminated by a linefeed. Each line should contain the same number of fields, which are separated by a single character, usually a comma. Fields may be enclosed in double-quote characters. If they are, then fields may contain commas or linefeed characters. They can also contain double-quote characters if ‘escaped’ with a second adjacent double-quote character. Null data values are denoted by two delimiters in a row with no data between them. Character strings in a delimited text line can be enclosed in double quotation marks (“”). No blanks can occur before or after delimited values

The first line of the file may be a header line which contains the name of each column. There may be an initial ‘comment’ line initiated by a hash (#) character, and this is either terminated by a linefeed character or, if followed by a double-quote, until a subsequent unescaped  double-quote, followed by a linefeed character.

CSV is unusual in that it encloses the entire field in double quotes if it contains the separator. If the field contains double quotes, it must be ‘escaped’ by a second double quotes so that all double quotes in the field are repeated twice to indicate that they don’t end the field. However, If  a repeated double-quote are the only two characters within the field, this indicates a field containing an empty string, which is quite different from NULL, signifying an unknown value.

Because the rules are underspecified, different implementations diverge in their handling of edge cases. You will find in some products that continuation lines are supported by starting the last field of the line with an un-terminated double-quote. Microsoft, surprisingly, sometimes has incompatible versions of CSV files between its own applications, and has even had incompatible CSV files in different versions of the same application

There is a good formal grammar for producing a CSV reader or writer here.

A quick tour of some of the alternatives

You are generally struck with one of four alternative requirements:

  • Pushing data into a SQL Server table from a file via an external process.
  • Pulling data out of a SQL Server table to a file via an external application
  • pushing data from a SQL Server table to a file via TSQL
  • Pulling data out of a file to a SQL Server table via TSQL.

It isn’t always as easy as you’d expect.

One obvious problem comes from values that aren’t delimited with double-quotes. Often, programmers assume that numbers don’t need delimiters. Unfortunately, parts of Europe use the comma as a ‘decimal point’ in money, and some representations of large integer values have a comma as ‘thousands’ separators. This sort of mistake is common to find, but It is not the CSV convention that is at fault, but the implementation. The easiest way to test, and often break, a poor implementation of CSV is to put the linefeed characters into a string value. With BCP, its defects are even less subtle. Even putting a comma into a properly delimited string breaks the import. For the demonstration of this, you’ll need the spSaveTextToFile procedure from The TSQL of Text.


Much better, but you’ll see that we possibly suffer from the vagueness of the CSV spec, as I reckon that those descriptions should be blank. There is a great difference between a NULL and an empty string.

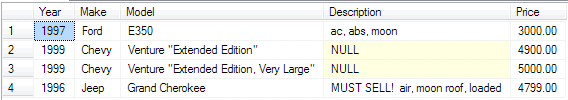

So let’s try to read it in via TSQL . We’ll get to the details of this code later on in the article.


Yes, this is correct.

As well as ‘pulling’ files into SQL Server via TSQL, we can ‘push’ them via an external app. In the old days we’d use DTS or SSIS but this is very over-engineered for the purpose, and PowerShell makes this very easy since one can read in a CSV file and then use  Data.SqlClient.SqlBulkCopy to insert the data into a SQL Server database table.

The reverse process is even easier. Here we use SMO, but there are a number of alternatives

This produces a file containing this.

Yes, it is correct. You can see that the people who devised the ConvertTo-CSV cmdlets played safe by delimiting every variable, which is fine but slightly more verbose than strictly necessary.

Another utility that is great for pushing CSV data into SQL Server is the LogParser.  This has become a cult application with websites dedicated to its use.  Basically, it can treat any text-based data file, whether XML, CSV, tab-delimited or whatever, as a single-table database. You can do SELECT statements on it, and output the results to a number of different formats, including a table in SQL: Server. This can be run at the command line, or automated via COM. Chad Miller has published a number of solutions using it for importing CSV into SQL Server. It is fast and reliable.



External process

TSQL

From table to CSV file

PowerShell, SSIS, SQLCMD

OpenRowSet with ODBCtext driver (requiring Schema.ini and file creation), Linked Server (ditto)

From CSV file to table

LogParser , SSIS, PowerShell, Net via Data.SqlClient.SqlBulkCopy

OpenRowSet with ODBCtext driver), Linked Server (ditto)

Reading from a CSV file into SQL Server via SQL

As we’ve seen, the CSV driver doesn’t perform too badly.  In fact using the ODBC Text Driver is usually the most convenient way to read a CSV file into, or out of, SQL Server. (we’d actually be using the Microsoft Jet IISAM driver under the covers) . BCP as a means of reading CSV is broken. If you need to use BCP (or FILE IMPORT) use native mode for tabular data, but don’t expect any other system to be able to read it.

The ODBC driver can use an external ‘schema.ini’ format file to control the details and, if necessary, specify the column headers and the data type formats and conversions. You will need to add ‘DBQ=C:\;’ to the connection string to specify the location of this, unless you store it in the same directory as the data.

If you are lucky enough to have ad-hoc distributed queries allowed on your server ..

..then you can treat a CSV file as a quasi-table.

This is fine, and you can alter the provider connection string in a number of ways to specify whether it is tab delimited or CSV, and whether there are headers in the file or not. If there aren’t, you need to get the information about the column names from somewhere else, and that ‘somewhere else’ is the ‘schema.ini’ file. The ODBC text driver can use an external ‘schema.ini’ format file to control the details and, if necessary, specify the column headers and the data type formats and conversions. You will need to add ‘DBQ=C:\;’ to the connection string to specify the location of this, unless you store it in the same directory as the data. The driver will look in the directory you’ve specified, and look for a ‘Schema.ini’ file there. If it is there, it looks up a section with the same name as the file you want to read from and will pull out the details it needs.

This ‘Schema.ini’ file stores the metadata. It gives you a lot of control over the format. You can specify whether your text files are CSV, Tab delimited or fixed-column in format. You have a lot of control over date and currency formats too. If you haven’t got a header line in your CSV file, you can specify the column names and also the data type. Unfortunately, these types are not SQL types, but JET types from way back, and it is tricky, but possible, to get a match for such things as varbinary or xml SQL Server Datatypes. The Text ODBC driver has a GUI way of creating such schema.ini files, but it uses only a subset of the JET data types that are available in the driver, and has left out the vital ‘decimal, or numeric, type.

Fortunately, if we are using this ODBC driver to write out CSV files of tables or views, we can generate this file in TSQL, from the information schema for whatever database you are using. Each table or view can have an entry in the one .INI file, and we can store all the files in the one directory. We’ll show you how to do this in this article. Once we have done this, we will have a text-based database that we can write to or read from.

Using a linked Server

Usually, the best way to interact with any ODBC source is to treat it as a linked database. This takes a bit of effort with CSV, but is worth doing because it makes the process of creating CSV reports very easy, because you are dealing with the files as if they were tables. This means that you can use the CSV as the ‘staging’ tables for import, and merely use UPDATE statements  to do the refreshing . For outputting reports, I generally create ordinary views that give the format I want, and then create the reports as linked tables in the ‘CSV database’. This means that you can keep these reports up to date as a background task, and just make copies as and when you need them.

I’ve created a stored procedure that keeps all the messy details from you. You just set it going and get on with something else.

Here, we are writing a file out to a directory on the server, setting up a linked server, and writing out the table ‘CrudeOilProduction’ to it. We leave things with the linked server still in place.

And we can then read it in with something like this.

Generally, you’ll just want to do this with views, but just to demonstrate what is possible, (and we squeezed out a few unexpected bugs in the process) we’ll create the entire AdventureWorks CSV database, views and tables, and fill them

This routine is setting up a linked server called ‘AdventureCSV.  It is then finding out all the tables that conform to your wildcard specification, and the information about the columns within those tables. It is then creating all the tables as files within a directory on disk whose path is ‘d:\textVersionOfAdventureWorks’. Having done that, it is then creating a SCHEMA.INI file which it writes to the same directory. In the schema, it puts all the metadata about the tables or views, mapping the SQL Server datatypes to the ODBC (Jet 4) datatypes. It then fills the CSV files with data, using SQL Expressions, and inserting into the files as if they were tables. Finally, it saves all the SQL to disk so that you can do an autopsy on the result to check for errors.

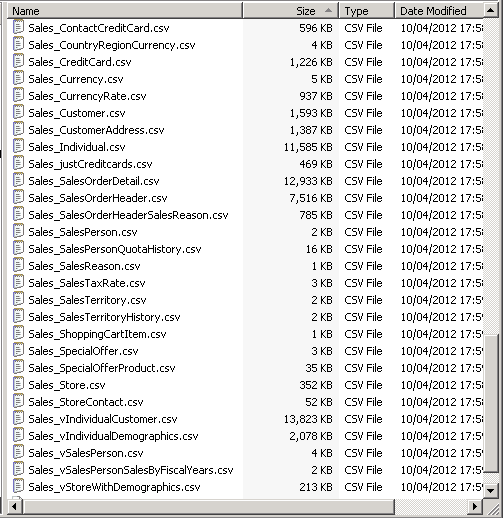

Here is part of the results, on a server directory


And here is an excerpt of the machine-generated .ini file…

…along with some of the machine-generated insert statements!

OK, it took five minutes to run, which is a bit extreme.  BCP takes around two minutes on the same task using native mode, but, of course doesn’t do CSV properly.

The source for these routines can be downloaded at the bottom of the article.

Handling CSV Using TSQL

You can parse CSV using nothing other than SQL. I decided to demonstrate this with a parser that writes to a hierarchy file that I’ve already described in another Consuming JSON Strings in SQL Server. Just occasionally, you’ll find that you have to deal with data represented by a CSV representation within a string. Well, it has happened to me! I have created a function that returns a hierarchy table and another one that just converts it into a standard SQL result. The only real point of returning it as a hierarchy table is that the same table gets returned whatever the CSV, and also that you can then turn it into JSON or XML if you get the urge.

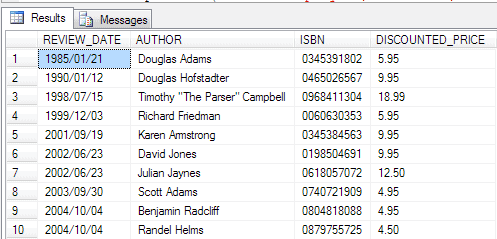

Which produces this…

…which produces this…

The procedure that produces a table seems far more useful than it turns out to be in practicality. Although one can do this (thanks for the sample, Timothy)

… To produce ..


..it is more useful for debugging and developing than in a production system.

Naturally, it would be good to have some of the features available to XML markup built-into SQL Server. It wouldn’t, surely, take much to add a FOR CSV  to the FOR XML. Sadly for those of us who still need to deal with CSV, we are left with an ODBC driver that doesn’t seem to have changed much in years.

Conclusions

Whereas there are plenty of ways of placing CSV data into staging tables, there are fewer ways of accessing tabular information in CSV format more directly. The ODBC text driver, for all its faults and limitations, still provides the best single means for both reading and writing CSV file data. If it was made more correct in its interpretation of CSV, and allowed ODBC SQL CREATE statements as other ODBC drivers have,  then it would be far more useful. Naturally, if CSV format in SQL Serve had been accorded just a small fraction of the effort put into XML, then I wouldn’t have needed to write this article at all!
