An Easier Way of Pivoting Data in SQL Server

The Pivot or Transpose

Many developers just want to ’rotate’, pivot or transpose a result as if it were a matrix. This involves turning columns into rows by, in effect, transposing the two coordinates. There is, of course, a lot of difference between a pivot and a transpose because columns in a SQL Table represent the discrete values of entities, not values in a range. However, we are all faced with data in a table format such as an Excel PivotTable or a tabular report that may be a table but not a relational table. Often, we want to pivot it/do a transpose. Usually, neither a pivot or a tabular report are, strictly, relational tables, but if we are in the midst of delivering meaningful reports, who cares? A lot of systems need reports in a particular format and we have to provide that.

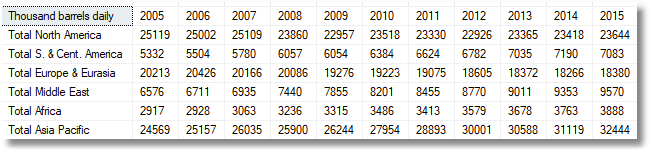

Imagine we get something like this, the world’s oil consumption figures…

And we need to provide it in this format…

There is a problem here because someone is going to add some columns to represent recent data. What about the two subsequent years at least 2016 and 2017? I’ve recently described some of the classic ways of doing this, and a good brute-force JSON technique to achieve the same, but they have the problem that the code to do the rotation needs to change when those extra rows are added. What about a technique that goes further by transposing/pivoting data of any size? Well, sure, as long as it is a JSON table, but there is just a little essential task at the end to provide the column names and datatypes of the SQL Server result.

A Simple Demonstration

Let’s just demonstrate what I mean as simply as possible. We start with a simple result produced by this test code.

SELECT * FROM

(

VALUES

(1, 2, 3, 4),

(5, 6, 7, 8),

(9, 10, 11, 12),

(13, 14, 15, 16)

) AS rotated (One, Two, Three, Four);

We now transpose it by executing this code using a function I’ll introduce and explain later. (I’ve embedded the values of the original result)

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES (1,2,3,4),(5,6,7,8),(9,10,11,12),(13,14,15,16)

)rotated(One, Two, Three, Four ) FOR JSON auto))))

WITH ( [First] int '$.Col1',[Second] int '$.Col2', [Third] int '$.Col3',

[Fourth] int '$.Col4' )

… which produces this…

That line at the end is important because it tells the system function OpenJSON() what columns you want from the JSON document and what SQL Datatype they should be. This task is essential because there is a loss of metadata when a table is converted into JSON. We don’t know much about numbers when they are stored in JSON, only that something is a number.

OK. Now we supply a result of a different size

SELECT * FROM

(

VALUES

(1, 2, 3, 4, 5),

(6, 7, 8, 9, 10),

(11, 12, 13, 14, 15),

(16, 17, 18, 19, 20),

(21, 22, 23, 24, 25),

(26, 27, 28, 29, 30)

) AS rotated (One, Two, Three, Four, Five);

Despite the change in the number of rows and columns, we can use the same routine, unaltered. We just need, when we use the function, to define the extra two columns that result from there being two extra rows in the original.

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES (1,2,3,4,5),(6,7,8,9,10),(11,12,13,14,15),

(16,17,18,19,20),(21,22,23,24,25),(26,27,28,29,30)

)rotated(One, Two, Three, Four, Five) FOR JSON auto))))

WITH ( [First] int '$.Col1',[Second] int '$.Col2',

[Third] int '$.Col3', [Fourth] int '$.Col4', [fifth] int '$.Col5', [Sixth] int '$.Col6')

… transposed to…

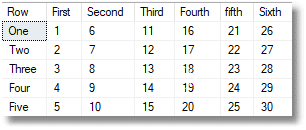

You will have noticed a problem. What about the column headings (One to Five). Those have gone. Shouldn’t we have made them into row headings?

In this particular example of the matrix we don’t have to, but we can. We can reference what were the column headings as another column ‘’$.Col0’’, to transpose what were the row headings into column headings.

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES (1,2,3,4,5),(6,7,8,9,10),(11,12,13,14,15),

(16,17,18,19,20),(21,22,23,24,25),(26,27,28,29,30)

)rotated(One, Two, Three, Four, Five) FOR JSON auto))))

WITH ( [Row] VARCHAR(10) '$.Col0',[First] int '$.Col1',[Second] int '$.Col2',

[Third] int '$.Col3', [Fourth] int '$.Col4', [fifth] int '$.Col5', [Sixth] int '$.Col6')

The Generic TransposedJSONMatrix Function

Here is the code of the procedure used in the preceding examples. All we are really doing is to take a matrix of one consistent data type and to transpose it. We can’t add a column of strings, because that would equate to a row of strings in a table of integers which makes no sense in SQL Server. JSON can cope with it without any problem at all, but only because it is not, by default, a way of representing tabular data. All we are really doing is to use the OpenJSON() function to unwrap the JSON into a relational table that records each cell and its value, together with its column and row. We then create a new JSON document with transposed rows and columns. Because we pass JSON in and out of the function we avoid the problems that we’d have with doing the same thing with tables.

IF Object_Id('dbo.TransposedJSONMatrix','FN') IS NOT NULL

DROP FUNCTION dbo.TransposedJSONMatrix

CREATE FUNCTION dbo.TransposedJSONMatrix

(@JSON AS Nvarchar(MAX))

RETURNS Nvarchar(MAX)

BEGIN

/**

Summary: >

A new way of pivoting results of any length and width

This is an inline function that takes a SQL Server result converted to

a JSON document and transposes it, or pivots it. It returns the pivoted JSON

Author: PhilFactor

Date: 21/12/2017

Example: >

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES (1,2,3,4),(5,6,7,8),(9,10,11,12),(13,14,15,16)

)OurMatrix([first],[second],[third],[fourth]) FOR JSON auto))))

WITH ( [row] varchar(10) '$.Col0', [First] int '$.Col1',[Second] int '$.Col2',

[Third] int '$.Col3',[Fourth] int '$.Col4' )

Returns: >

A json file representing the transpose

**/

DECLARE @TheMatrix TABLE

(

RowNumber INT IDENTITY(1, 1) NOT NULL PRIMARY KEY, --the row number of the row

TheColumn INT NULL, --null if the entry corresponds with the row object

TheKey NVARCHAR(200) NOT NULL, --the KEY FOR the JSON opject

TheValue NVARCHAR(MAX) NOT NULL --the value (json expression if an object)

);

/*firstly we unwrap the first level to give us the row number

along with each row object

INSERT INTO @thematrix(TheKey, TheValue)

SELECT --

[KEY], Value

FROM OpenJson(@json)

WHERE type = 5;

DECLARE @TheNormalisedVersionOfTheMatrix TABLE

(--each row represents a cell

colOrder INT IDENTITY NOT null,--we need to know this to get the order right

Rownumber INT, --the row number the column is associated with in the matrix

RowKey VARCHAR(100), --the key field for the row

ColKey VARCHAR(100), --the key for the column

TheValue VARCHAR(MAX), --the value in the cell

valuetype INT

);

INSERT INTO @TheNormalisedVersionOfTheMatrix(RowNumber, RowKey, ColKey, TheValue, ValueType)

SELECT TheColumns.RowNumber, TheColumns.TheKey,

acolumn.[Key], acolumn.Value, acolumn.Type

FROM @TheMatrix AS TheColumns

CROSS APPLY OpenJson(TheColumns.TheValue) AS acolumn --unwrap each column

WHERE acolumn.Type <> 5;

/* now all we have to do is to assemble the JSON from the cells, but transposing rows and columns*/

RETURN --

'[' --

+ Stuff --we will be concatenating a list of rows.

((

SELECT Max(aLine.theline)

FROM @TheNormalisedVersionOfTheMatrix AS EachRow

CROSS APPLY

(

SELECT --

',{"Col0":"'+ EachRow.ColKey+'"'--this captures what was the column name

+ (SELECT ',"Col' + Convert(VARCHAR(8), Rownumber) + '":' --and then

+ CASE EachNewRowContents.valuetype -- ..we do all the rows

WHEN 0 THEN 'NULL'

WHEN 1 THEN '"'+ STRING_ESCAPE(TheValue, 'json') + '"'

ELSE TheValue

end

FROM @TheNormalisedVersionOfTheMatrix AS EachNewRowContents

WHERE EachNewRowContents.colkey = EachRow.ColKey

ORDER BY colorder --we need to make the order explicit

FOR XML PATH(''), TYPE -- we sew together then new rows

).value('.', 'varchar(max)') + '}' AS theline

) AS aLine

GROUP BY EachRow.ColKey

ORDER BY Min(EachRow.colOrder)

FOR XML PATH(''), TYPE --and sew together the rows

).value('.', 'varchar(max)'),

1, 1, '') --we do this to knock off the initial comma

+ ']';-- the JSON array terminator

END

Trying it out

Now we can put our generic function through its paces to test it out. Here is the data before the transpose.

— now we test it out

DECLARE @MyMatrixTable TABLE --we want to generate a test table with random integers

(

[1st] INT NOT null, [2nd] INT NOT null, [3rd] INT NOT null,

[4th] INT NOT null, [5th] INT NOT null, [6th] INT NOT null,

[7th] INT NOT null, [8th] INT NOT null

)

INSERT INTO @MyMatrixTable([1st], [2nd], [3rd], [4th], [5th], [6th], [7th], [8th])

SELECT [first]*100, [second]*100, third*100, fourth*100, fifth*100, sixth*100

, Seventh*100, eighth*100

FROM (VALUES

(Rand(), Rand(),Rand(),Rand(),Rand(),Rand(),Rand(),Rand()),

(Rand(), Rand(),Rand(),Rand(),Rand(),Rand(),Rand(),Rand())

)RandomNumbers([first], [second], third, fourth, fifth, sixth, seventh, eighth)

-- we can avoid iteration for small tables!

SELECT * FROM @MyMatrixTable

-- we show what it is before the transpose

SELECT --and now what it is afterwards

FROM

OpenJson(( --this outputs the transposed Matrix

SELECT

dbo.TransposedJSONMatrix --using our function

(

(SELECT * FROM @MyMatrixTable FOR JSON AUTO

)

WITH

(

[Row] VARCHAR(5) '$.Col0', [1] INT '$.Col1', [2] INT '$.Col2', [3] INT '$.Col3',

[4] INT '$.Col4', [5] INT '$.Col5', [6] INT '$.Col6'

);

After the transpose, the data looks like this:

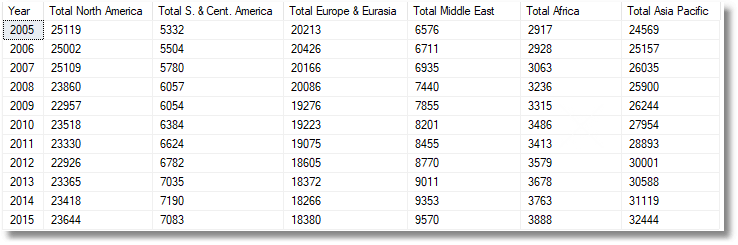

Now the first example we gave at the start of the article is generated simply by following the same pattern. Remember that this code would be very small were it not for the fact that we are generating the data table as a table-source, using several sets of row value expressions to be constructed into a table via the VALUE table-value constructor. This is useful when running a function through a series of unit tests because it keeps everything in one place.

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM (values

(25119,25002,25109,23860,22957,23518,23330,22926,23365,23418,23644),

--'Total North America'

(5332,5504,5780,6057,6054,6384,6624,6782,7035,7190,7083),

--'Total S. & Cent. America

(20213,20426,20166,20086,19276,19223,19075,18605,18372,18266,18380),

--'Total Europe & Eurasia'

(6576,6711,6935,7440,7855,8201,8455,8770,9011,9353,9570),

--'Total Middle East',6576

(2917,2928,3063,3236,3315,3486,3413,3579,3678,3763,3888),

--'Total Africa',2917,2928

(24569,25157,26035,25900,26244,27954,28893,30001,30588,31119,32444)

--'Total Asia Pacific'

)oilConsumption([2005],[2006],[2007],[2008],[2009],[2010],[2011],[2012],[2013],[2014],[2015])

FOR JSON auto))))

WITH (

[Year] int '$.Col0', --remember that these are the column names of the original table

[Total North America] int '$.Col1',

[Total S. & Cent. America] int '$.Col2',

[Total Europe & Eurasia] int '$.Col3',

[Total Middle East] int '$.Col4',

[Total Africa] int '$.Col5',

[Total Asia Pacific] int '$.Col6'

)

What about doing other datatypes besides integers?

So far, we’ve stuck resolutely to integers in our matrix. As long as we are consistent, we can use whatever we like. Obviously, if we are pivoting a matrix, the cells will all need to have the same datatype in SQL Server.

We can to other datatypes. How about numeric?

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES (1.3,2.4,3.5,4.7),(5.7,6.8,7.9,8.0),

(9.1,10.2,11.3,12.4),(13.5,14.6,15.7,16.8)

)OurMatrix([first],[second],[third],[fourth]) FOR JSON auto))))

WITH ( [row] varchar(10) '$.Col0', [First] NUMERIC(8,1) '$.Col1',

[Second] NUMERIC(8,1) '$.Col2',[Third] NUMERIC(8,1) '$.Col3',

[Fourth] NUMERIC(8,1) '$.Col4' )

… transposed to …

We can do strings too

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES ('Amelia','Olivia','Isla','Emily'),('Poppy','Ava','Isabella','Jessica'),

('Lily','Sophie','Grace','Sophia'),('Mia','Evie','Ruby','Ella')

)OurMatrix([first],[second],[third],[fourth]) FOR JSON auto))))

WITH ( [row] varchar(10) '$.Col0', [First] varchar(10) '$.Col1',

[Second] varchar(10) '$.Col2',[Third] varchar(10) '$.Col3',

[Fourth] varchar(10) '$.Col4' )

… transposed to …

BITs are possible too …

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrix((

SELECT * FROM

(VALUES ('true','true','true','true'),('false','true','false','true'),

('true','false','true','false'),('false','false','false','false')

)OurMatrix([first],[second],[third],[fourth]) FOR JSON auto))))

WITH ( [row] varchar(10) '$.Col0', [First] bit '$.Col1',[Second] bit '$.Col2',

[Third] bit '$.Col3',[Fourth] bit '$.Col4' )

… transposed to …

What About the row and column aggregations?

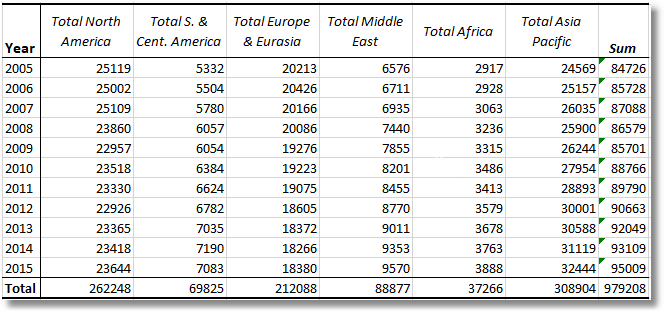

Yes, that first example, the oil consumption totals, needed row and column totals, didn’t it? We wanted to see how the petrol consumption increased over the years.

With a bit of a tweak that I’ll show you in a moment, we can do this (I’ve highlighted the aggregation column and row).

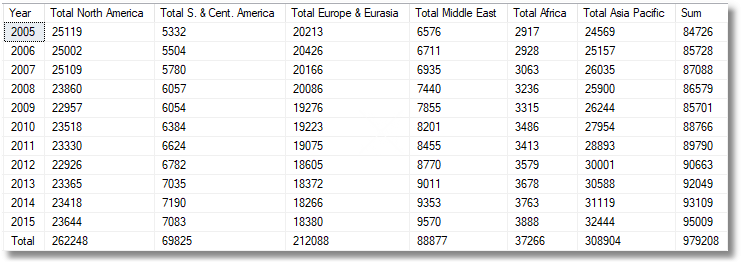

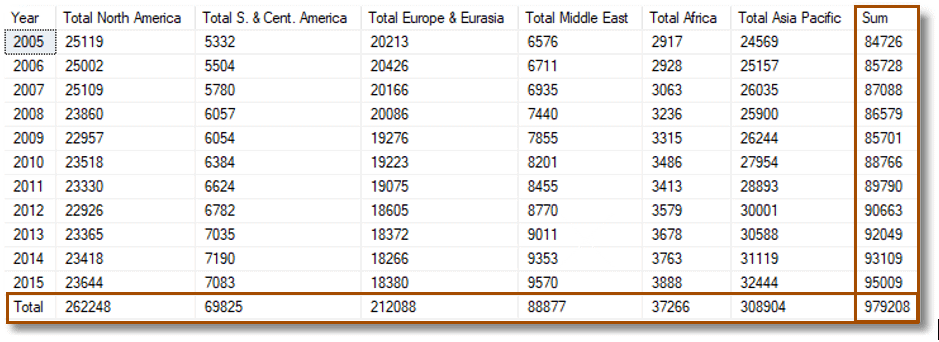

…which, this being my lucky day, checks out if we do the totals using the SUM() function within Excel.

How could we do this so easily? You see, we had to shred the JSON into its normalised form anyway in order to do the transpose, so doing the aggregation within the function was the natural thing to do. Unfortunately, we can’t do every type of aggregation within the one function, and we can’t aggregate every datatype. You will have to build very slightly different functions for each.

There isn’t that much code needed to perform this magic.

Inside the function, after we insert our data into the @TheNormalisedVersionOfTheMatrix table, we have a couple of extra insertions to do to get the extra column and row in.

DECLARE @Rowcount INT

= (SELECT Max([@TheNormalisedVersionOfTheMatrix].Rownumber)

FROM @TheNormalisedVersionOfTheMatrix);

INSERT INTO @TheNormalisedVersionOfTheMatrix ( Rownumber, RowKey, ColKey,

TheValue, valuetype)

SELECT RowKey + 1, RowKey, 'Total', Sum(Convert(bigINT, TheValue)), 2

FROM @TheNormalisedVersionOfTheMatrix WHERE valuetype = 2

GROUP BY RowKey;

INSERT INTO @TheNormalisedVersionOfTheMatrix ( Rownumber, RowKey, ColKey,

TheValue, valuetype)

SELECT @Rowcount + 1, @Rowcount, ColKey, Sum(Convert(BIGINT, TheValue)), 2

FROM @TheNormalisedVersionOfTheMatrix WHERE valuetype = 2

GROUP BY ColKey;

I chose a label ‘Total’ for the column totals, and I specified a BIGINT, but you could choose all manner of datatypes, and even do a different aggregation such as average or minimum. Here is the code for the new function:

100

101

IF Object_Id('dbo.TransposedJSONMatrixWithIntTotals','FN') IS NOT NULL

DROP FUNCTION dbo.TransposedJSONMatrixWithIntTotals

CREATE FUNCTION dbo.TransposedJSONMatrixWithIntTotals

(@JSON AS Nvarchar(MAX))

RETURNS Nvarchar(MAX)

BEGIN

/**

Summary: >

A new way of pivoting results of any length and width and also gives integer

row and column totals.

This is an inline function that takes a SQL Server result converted to

a JSON document and transposes it, or pivots it. It returns the pivoted JSON

Author: PhilFactor

Date: 21/12/2017

Example: >

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrixWithIntTotals((

SELECT * FROM

(VALUES (1,2,3,4),(5,6,7,8),(9,10,11,12),(13,14,15,16)

)OurMatrix([first],[second],[third],[fourth]) FOR JSON auto))))

WITH ( [row] varchar(10) '$.Col0', [First] int '$.Col1',[Second] int '$.Col2',

[Third] int '$.Col3',[Fourth] int '$.Col4',[Sum] int '$.Col5' )

Returns: >

A json file representing the transpose

**/

DECLARE @TheMatrix TABLE

(

RowNumber INT IDENTITY(1, 1) NOT NULL PRIMARY KEY, --the row number of the row

TheColumn INT NULL, --null if the entry corresponds with the row object

TheKey NVARCHAR(200) NOT NULL, --the KEY FOR the JSON opject

TheValue NVARCHAR(MAX) NOT NULL --the value (json expression if an object)

);

--firstly we unwrap the first level to give us the row number

--along with each row object

INSERT INTO @thematrix(TheKey, TheValue)

SELECT --

[KEY], Value

FROM OpenJson(@json)

WHERE type = 5;

DECLARE @TheNormalisedVersionOfTheMatrix TABLE

(--each row represents a cell

colOrder INT IDENTITY NOT null,--we need to know this to get the order right

Rownumber INT, --the row number the column is associated with in the matrix

RowKey VARCHAR(100), --the key field for the row

ColKey VARCHAR(100), --the key for the column

TheValue VARCHAR(MAX), --the value in the cell

valuetype INT

);

INSERT INTO @TheNormalisedVersionOfTheMatrix(RowNumber, RowKey, ColKey, TheValue, ValueType)

SELECT TheColumns.RowNumber, TheColumns.TheKey, acolumn.[Key],

acolumn.Value, acolumn.Type

FROM @TheMatrix AS TheColumns

CROSS APPLY OpenJson(TheColumns.TheValue) AS acolumn --unwrap each column

WHERE acolumn.Type <> 5;

DECLARE @Rowcount INT --find out the number of rows inserted

= (SELECT Max([@TheNormalisedVersionOfTheMatrix].Rownumber)

FROM @TheNormalisedVersionOfTheMatrix);

--insert an extra Row at the end to give a total (Sum of the values in each column)

INSERT INTO @TheNormalisedVersionOfTheMatrix ( Rownumber, RowKey, ColKey,

TheValue, valuetype)

SELECT RowKey + 1, RowKey, 'Total', Sum(Convert(bigINT, TheValue)), 2

FROM @TheNormalisedVersionOfTheMatrix WHERE valuetype = 2

GROUP BY RowKey;

--insert an extra column at the end of each row to give a total (Sum of the values per row)

INSERT INTO @TheNormalisedVersionOfTheMatrix ( Rownumber, RowKey, ColKey, TheValue, valuetype)

SELECT @Rowcount + 1, @Rowcount, ColKey, Sum(Convert(bigINT, TheValue)), 2

FROM @TheNormalisedVersionOfTheMatrix WHERE valuetype = 2

GROUP BY ColKey;

/* now all we have to do is to assemble the JSON from the cells, but transposing rows and columns*/

RETURN --

'[' --

+ Stuff --we will be concatenating a list of rows.

((

SELECT Max(aLine.theline)

FROM @TheNormalisedVersionOfTheMatrix AS EachRow

CROSS APPLY

(

SELECT --

',{"Col0":"'+ EachRow.ColKey+'"'--this captures what was the column name

+ (SELECT ',"Col' + Convert(VARCHAR(8), Rownumber) + '":' --and then

+ CASE EachNewRowContents.valuetype -- ..we do all the rows

WHEN 0 THEN 'NULL'

WHEN 1 THEN '"'+ STRING_ESCAPE(TheValue, 'json') + '"'

ELSE TheValue

end

FROM @TheNormalisedVersionOfTheMatrix AS EachNewRowContents

WHERE EachNewRowContents.colkey = EachRow.ColKey

ORDER BY colorder --we need to make the order explicit

FOR XML PATH(''), TYPE -- we sew together then new rows

).value('.', 'varchar(max)') + '}' AS theline

) AS aLine

GROUP BY EachRow.ColKey

ORDER BY Min(EachRow.colOrder)

FOR XML PATH(''), TYPE --and sew together the rows

).value('.', 'varchar(max)'),

1, 1, '') --we do this to knock off the initial comma

+ ']';-- the JSON array terminator

END

Here is the code that produced the Oil Consumption figures with the added sum column and total row .

SELECT * FROM OpenJson((SELECT dbo.TransposedJSONMatrixWithIntTotals((

SELECT * FROM (values

--'Total North America'

(25119,25002,25109,23860,22957,23518,23330,22926,23365,23418,23644),

--'Total S. & Cent. America

(5332,5504,5780,6057,6054,6384,6624,6782,7035,7190,7083),

--'Total Europe & Eurasia'

(20213,20426,20166,20086,19276,19223,19075,18605,18372,18266,18380),

--'Total Middle East'

(6576,6711,6935,7440,7855,8201,8455,8770,9011,9353,9570),

--'Total Africa'

(2917,2928,3063,3236,3315,3486,3413,3579,3678,3763,3888),

--'Total Asia Pacific'

(24569,25157,26035,25900,26244,27954,28893,30001,30588,31119,32444)

)oilConsumption([2005],[2006],[2007],[2008],[2009],[2010],[2011],[2012],[2013],[2014],[2015])

FOR JSON auto))))

WITH (

[Year] VARCHAR(20) '$.Col0',

[Total North America] bigint '$.Col1',

[Total S. & Cent. America] bigint '$.Col2',

[Total Europe & Eurasia] bigint '$.Col3',

[Total Middle East] bigint '$.Col4',

[Total Africa] bigint '$.Col5',

[Total Asia Pacific] bigint '$.Col6',

[Sum] bigint '$.Col7'

)

We can see the aggregation column just by specifying Colx as the column in the JSON path where x is one more than the number of data columns. (We used Col0 in the JSON path for the rotated column headings). The Total row just appears!

The code for both functions can be downloaded from the link at the bottom of the page.

Conclusions

I couldn’t do any of this sort of trickery until the JSON support came into SQL Server 2016. I suspect that there is a way to use OpenXML to work the same magic, but I leave that for the keen reader, if any are still with me at this point. JSON is just so handy, and seems fast. It is a very relaxed way of getting data in and out of functions. It is also easy to debug. It was relatively easy to bring it to bear on a problem that has previously proved resistant to easy solution, the generic function to pivot data regardless of the number of rows and columns.

Register for Simple Talk

An Easier Way of Pivoting Data in SQL Server

The Pivot or Transpose

A Simple Demonstration

The Generic TransposedJSONMatrix Function

Trying it out

What about doing other datatypes besides integers?

What About the row and column aggregations?

Conclusions

About the author

Phil Factor

Phil Factor's contributions

Articles

Books

Top topics

Phil Factor's latest contributions:

AI and Databases

Storing and Retrieving the Initialization and Configuration Data for Applications

Concepts and Issues in Test Data Generation

The Pivot or Transpose

A Simple Demonstration

The Generic TransposedJSONMatrix Function

Trying it out

What about doing other datatypes besides integers?

What About the row and column aggregations?

Conclusions

Recommended

About the author

Phil Factor

Phil Factor's contributions

Articles

Books

Top topics

Phil Factor's latest contributions:

AI and Databases

Storing and Retrieving the Initialization and Configuration Data for Applications

Concepts and Issues in Test Data Generation
