SQL Server Table Smells

Table smells in SQL Server are just like code smells. They are just an indication that something may need to be checked or investigated. They are easy to check as well, because you can generally ferret through the object catalog metadata views to flush out the aspects that just don’t smell right. In this blog, I show the sort of query I’ll use. Actually, I generally use rather more strict criteria because I’d be concerned about tables that don’t seem to be making full use of constraints, and tables that don’t have ‘soft’ dependencies (aren’t referenced in code within the metadata, from views, procedures or functions). I like to have a result that displays the names of the tables that look suspect, along with the list of the ‘smells’.

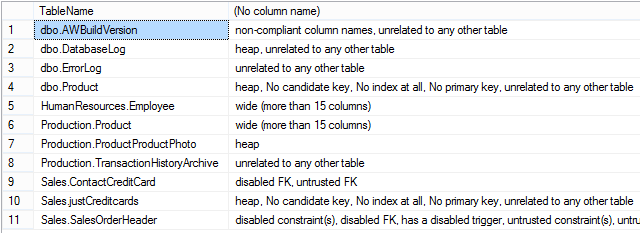

(from an old AdventureWorks 2008)

Here is the sort of code I use. Obviously, if there are ‘smells’ that you don’t consider to be worth investigating, then just comment them out of the version that you use.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

/**

summary: >

This query finds the following table smells

1/ is a Wide table (set this to what you consider to be wide)

2/ is a Heap

3/ is an undocumented table

4/ Has no Primary Key

5/ Has ANSI NULLs set to OFF

6/ Has no index at all

7/ No candidate key (unique constraint on column(s))

8/ Has disabled Index(es)

9/ has leftover fake index(es)

10/ has a column collation different from the database

11/ Has a surprisingly low Fill-Factor

12/ Has disabled constraint(s)'

13/ Has untrusted constraint(s)'

14/ Has a disabled Foreign Key'

15/ Has untrusted FK'

16/ Has unrelated to any other table'

17/ Has a deprecated LOB datatype

18/ Has unintelligible column names'

19/ Has a foreign key that has no index'

20/ Has a GUID in a clustered Index

21/ Has non-compliant column names'

22/ Has a trigger that has'nt got NOCOUNT ON'

23/ Is not referenced by any procedure, view or function'

24/ Has a disabled trigger'

25/ Can't be indexed'

Revisions:

- Author: Phil Factor

Version: 1.1

Modifications:

- added tests as suggested by comments to blog

Date: 30 Mar 2016

- Author: Phil Factor

Version: 1.2

Modifications:

- tidying, added five more smells

Date: 10 July 2020

returns: >

single result of table name, and list of problems

**/

WITH TableSmells (TableName, Problem, Object_ID)

AS (SELECT Object_Schema_Name(Object_ID) + '.' + Object_Name(Object_ID),

Problem, Object_ID

FROM

(

SELECT object_id, 'wide (more than 15 columns)'

FROM sys.tables /* see whether the table has more than 15 columns */

WHERE max_column_id_used > 15

UNION ALL

SELECT DISTINCT sys.tables.object_id, 'heap'

FROM sys.indexes /* see whether the table is a heap */

INNER JOIN sys.tables

ON sys.tables.object_id = sys.indexes.object_id

WHERE sys.indexes.type = 0

UNION ALL

SELECT s.object_id, 'Undocumented table'

FROM sys.objects AS s /* it has no extended properties */

LEFT OUTER JOIN sys.extended_properties AS ep

ON s.object_id = ep.major_id AND minor_id = 0

WHERE type_desc = 'USER_TABLE' AND ep.value IS NULL

UNION ALL

SELECT sys.tables.object_id, 'No primary key'

FROM sys.tables /* see whether the table has a primary key */

WHERE ObjectProperty(object_id, 'TableHasPrimaryKey') = 0

UNION ALL

SELECT sys.tables.object_id, 'has ANSI NULLs set to OFF'

FROM sys.tables /* see whether the table has ansii NULLs off*/

WHERE ObjectPropertyEx(object_id, 'IsAnsiNullsOn') = 0

UNION ALL

SELECT sys.tables.object_id, 'No index at all'

FROM sys.tables /* see whether the table has any index */

WHERE ObjectProperty(object_id, 'TableHasIndex') = 0

UNION ALL

SELECT sys.tables.object_id, 'No candidate key'

FROM sys.tables /* if no unique constraint then it isn't relational */

WHERE ObjectProperty(object_id, 'TableHasUniqueCnst') = 0

AND ObjectProperty(object_id, 'TableHasPrimaryKey') = 0

UNION ALL

SELECT DISTINCT object_id, 'disabled Index(es)'

FROM sys.indexes /* don't leave these lying around */

WHERE is_disabled = 1

UNION ALL

SELECT DISTINCT object_id, 'leftover fake index(es)'

FROM sys.indexes /* don't leave these lying around */

WHERE is_hypothetical = 1

UNION ALL

SELECT c.object_id,

'has a column ''' + c.name + ''' that has a collation '''

+ collation_name + ''' different from the database'

FROM sys.columns AS c

WHERE Coalesce(collation_name, '')

<> DatabasePropertyEx(Db_Id(), 'Collation')

UNION ALL

SELECT DISTINCT object_id, 'surprisingly low Fill-Factor'

FROM sys.indexes /* a fill factor of less than 80 raises eyebrows */

WHERE fill_factor <> 0

AND fill_factor < 80

AND is_disabled = 0

AND is_hypothetical = 0

UNION ALL

SELECT DISTINCT parent_object_id, 'disabled constraint(s)'

FROM sys.check_constraints /* hmm. i wonder why */

WHERE is_disabled = 1

UNION ALL

SELECT DISTINCT parent_object_id, 'untrusted constraint(s)'

FROM sys.check_constraints /* ETL gone bad? */

WHERE is_not_trusted = 1

UNION ALL

SELECT DISTINCT parent_object_id, 'disabled FK'

FROM sys.foreign_keys /* build script gone bad? */

WHERE is_disabled = 1

UNION ALL

SELECT DISTINCT parent_object_id, 'untrusted FK'

FROM sys.foreign_keys /* Why do you have untrusted FKs?

Constraint was enabled without checking existing rows;

therefore, the constraint may not hold for all rows. */

WHERE is_not_trusted = 1

UNION ALL

SELECT object_id, 'unrelated to any other table'

FROM sys.tables /* found a simpler way! */

WHERE ObjectPropertyEx(object_id, 'TableHasForeignKey') = 0

AND ObjectPropertyEx(object_id, 'TableHasForeignRef') = 0

UNION ALL

SELECT object_id, 'deprecated LOB datatype'

FROM sys.tables /* found a simpler way! */

WHERE ObjectPropertyEx(object_id, 'TableHasTextImage') = 1

UNION ALL

SELECT DISTINCT object_id, 'unintelligible column names'

FROM sys.columns /* column names with no letters in them */

WHERE name COLLATE Latin1_General_CI_AI NOT LIKE '%[A-Z]%' COLLATE Latin1_General_CI_AI

UNION ALL

SELECT keys.parent_object_id,

'foreign key ' + keys.name + ' that has no supporting index'

FROM sys.foreign_keys AS keys

INNER JOIN sys.foreign_key_columns AS TheColumns

ON keys.object_id = constraint_object_id

LEFT OUTER JOIN sys.index_columns AS ic

ON ic.object_id = TheColumns.parent_object_id

AND ic.column_id = TheColumns.parent_column_id

AND TheColumns.constraint_column_id = ic.key_ordinal

WHERE ic.object_id IS NULL

UNION ALL

SELECT Ic.object_id, Col_Name(Ic.object_id, Ic.column_id)

+ ' is a GUID in a clustered index' /* GUID in a clustered IX */

FROM sys.index_columns AS Ic

INNER JOIN sys.tables AS tables

ON tables.object_id = Ic.object_id

INNER JOIN sys.columns AS c

ON c.object_id = Ic.object_id AND c.column_id = Ic.column_id

INNER JOIN sys.types AS t

ON t.system_type_id = c.system_type_id

INNER JOIN sys.indexes AS i

ON i.object_id = Ic.object_id AND i.index_id = Ic.index_id

WHERE t.name = 'uniqueidentifier'

AND i.type_desc = 'CLUSTERED'

UNION ALL

SELECT DISTINCT object_id, 'non-compliant column names'

FROM sys.columns /* column names that need delimiters*/

WHERE name COLLATE Latin1_General_CI_AI LIKE '%[^_@$#A-Z0-9]%' COLLATE Latin1_General_CI_AI

UNION ALL /* Triggers lacking `SET NOCOUNT ON`, which can cause unexpected results WHEN USING OUTPUT */

SELECT ta.object_id,

'This table''s trigger, ' + Object_Name(tr.object_id)

+ ', has''nt got NOCOUNT ON'

FROM sys.tables AS ta /* see whether the table has any index */

INNER JOIN sys.triggers AS tr

ON tr.parent_id = ta.object_id

INNER JOIN sys.sql_modules AS mo

ON tr.object_id = mo.object_id

WHERE definition NOT LIKE '%set nocount on%'

UNION ALL /* table not referenced by any routine */

SELECT sys.tables.object_id,

'not referenced by procedure, view or function'

FROM sys.tables /* found a simpler way! */

LEFT OUTER JOIN sys.sql_expression_dependencies

ON referenced_id = sys.tables.object_id

WHERE referenced_id IS NULL

UNION ALL

SELECT DISTINCT parent_id, 'has a disabled trigger'

FROM sys.triggers

WHERE is_disabled = 1 AND parent_id > 0

UNION ALL

SELECT sys.tables.object_id, 'can''t be indexed'

FROM sys.tables /* see whether the table has a primary key */

WHERE ObjectProperty(object_id, 'IsIndexable') = 0

) AS f(Object_ID, Problem) )

SELECT TableName,

CASE WHEN Count(*) > 1 THEN /*only do correlated subquery when necessary*/

Stuff(

(

SELECT ', ' + Problem

FROM TableSmells AS t2

WHERE t1.TableName = t2.TableName

ORDER BY Problem

FOR XML PATH(''), TYPE

).value(N'(./text())[1]', N'varchar(8000)'), 1, 2,'' )

ELSE Max(Problem)

END AS symptoms

FROM TableSmells AS t1

WHERE ObjectPropertyEx(t1.Object_ID, 'IsTable') = 1

AND ObjectPropertyEx(t1.Object_ID, 'IsSystemTable') = 0

GROUP BY TableName;

So there is the code. What other types of table smell do you look for, and how do you search for it?

Revised: 31st March 2016: Added ‘smells’ requested by readers of the blog

Revised: 13th July 2020: Added more ‘smells’.
