What’s New in Exchange Server 2010 SP1?

Comments 0

Share to social media

During TechEd US in June 2010, Microsoft released the public beta of Exchange Server 2010 Service Pack 1. Besides a number of hotfixes, there’re also a handful of new features and improvements when compared to Exchange Server 2010 RTM (Release To Manufacturing, i.e. the original version), so it’s time for a quick glance at SP1.

Installing Exchange Server 2010 SP1

One of the neat additions in SP1 is automatic installation of prerequisite Server Roles and Features (like the IIS and .NET Framework) during setup. Just check the “Automatically install Windows Roles and Features required for Exchange Server” option at the bottom of the Installation Type screen, and you’re ready to go.


Figure 1. Automatically install Windows prerequisite software.

When installing Exchange Server 2010 SP1, the setup application also changes the settings of the Net.TCP port sharing service from manual to automatic, something which most of us always forget to change up front when installing Exchange Server 2010 RTM.

Archiving

One of the largest complaints in Exchange Server 2010 RTM was the fact that a user’s Personal Archive was located in the same Mailbox Database as their primary Mailbox. What Exchange Administrators (and their managers) really want is to be able to offload the Personal Archive to another Mailbox Database, and preferably to another Mailbox Server, whether or not this is running on a wonderful thing called “cheap storage”.

Thankfully, Service Pack 1 now provides the option to configure a Personal Archive on another Mailbox Database, and even on another Mailbox Server. In my own environment, this means that the regular Mailbox Databases are stored on a SAN, and the Archive Mailbox Databases are stored on SATA disks. Another interesting thing is that the Mailbox Databases containing primary Mailboxes can be in a different backup cycle to the Mailbox Databases containing Personal Archives, which can save valuable disk space on your backup server. To prevent the automatic creation of primary Mailboxes in the same Database as Personal Archives, you can use the Set-MailboxDatabase cmdlet in the Exchange Management Shell with the
-isexcludedfromprovisioning parameter (I’m not going to go into more details right now, as this is an overview. If you want to know more, there’s extensive information on TechNet).

Implementing a Personal Archive can be part of an overall compliancy solution. In Exchange Server 2007, Microsoft introduced “Messaging Record Management” (or MRM for short), which made it possible to manage data in Mailboxes, and the “Managed Folders” were the way to do this. In Exchange Server 2010, this was changed to the Retention Policies and Retention Policy Tags, known as MRM version 2. Microsoft is still working on refining MRM, and in Service Pack 1 you’ll find the Retention Policies and Retention Policy Tags in the Exchange Management Console (they were managed from the Management Shell in Exchange 2010 RTM).

Unfortunately, you’ll also find that the Managed Folders now cannot be configured from the Exchange Management Console anymore. For configuring Managed Folders, you have to use the Exchange Management Shell in SP1, but since the Managed Folders are not compatible with new Retention Policies and the Personal Archive, you might want to consider decommissioning Managed Folders anyway.


Figure 2. Retention Policy Tags now available in the EMC

Overall, you’ll find changes in the way things are managed, as things are being moved from the Shell to the Console (or vice versa), but you’ll also see an increase in Exchange management possibilities in the Exchange Control Panel.

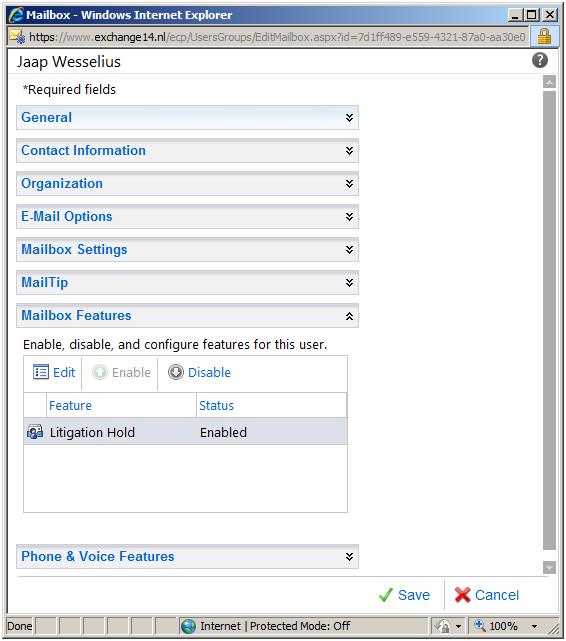

Figure 3. Improved possibilities in the Exchange Control Panel

In Service Pack 1, the Multi-Mailbox Search has improved, resulting in more functionality like the search estimate or the de-duplication of search results. When performing a Search in SP1, you now can perform a sort of “what if” search, which will only give an estimation of the results that would be returned, preventing an unanticipated search result of millions of items (and the accompanying search time, of course). There’s also a handy de-duplication, so that duplicate items in the search results are smoothly removed.

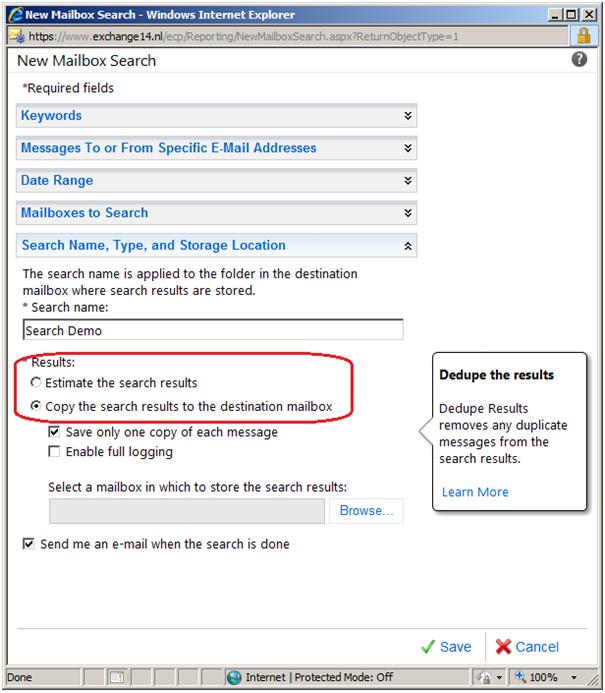

Figure 4. New features in the Mailbox Search option

Import and Export Mailboxes

One of most important items that has been on every Exchange admin’s wish list is a decent way to import and export mailboxes to .PST files, and this looks very promising in Service Pack 1. Microsoft has re-engineered the Import-Mailbox and Export-Mailbox cmdlets in such a way that they now actually work as expected and, most importantly, Outlook is finally no longer needed! You can not only export a user’s primary mailbox to a .PST file, but also their Personal Archive; just enter the following Exchange Management Shell command to export an Archive to a .PST file:

New-MailboxExportRequest -Mailbox J.Wesselius -FilePath “c:\temp\jaap-archive.pst” -IsArchive

The reverse is now also possible; to import a user’s .PST file into their Personal Archive, just use the following command:

New-MailboxImportRequest -Mailbox J.Wesselius -IsArchive -FilePath “c:\temp\jaap-archive.pst”

Store changes

Minor changes have been made to the core store functionality. Hard disks have improved and are larger than before, and so SP1 is able to deal with these even larger disks with better performance. Also, when moving a Mailbox from one Database to another, it is no longer necessary to close Outlook, so your users will happily see this message less often:


I say “less often” because this is only the case when moving mailboxes from an SP1 Database to another SP1 Database. When moving from Exchange Server 2010 RTM to an SP1 Database, you will still have to restart Outlook.

From a user perspective

The Outlook Web App has been improved, and the OWA theme is back. OWA comes with a set of built-in themes, and although it is possible to add a custom theme, it still requires quite a bit of development, and the possibility exists that your custom theme is overwritten when applying a future hotfix or Service Pack.

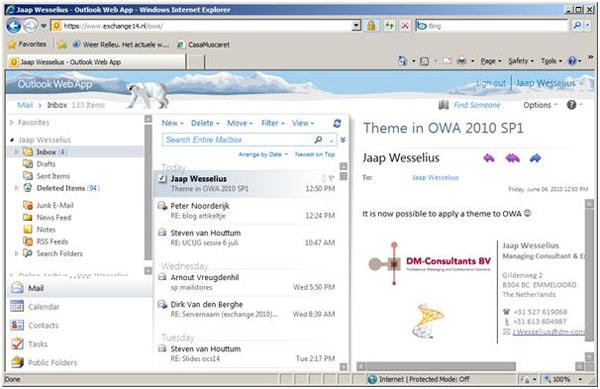

Figure 5. Apply a theme to customize  OWA

Outlook Web App is now a truly cross-browser solution so you can, for example, use OWA in Firefox on an Apple Macbook with the complete feature-set at your disposal. New for Internet Explorer users is the fact that OWA now uses Silverlight functionality, if you have the technology installed, of course. For example, when you compose a new message and add an attachment, you’ll just see a ‘normal’, desktop-like window where you can select the attachment you want to add, and this is actually built on Silverlight.

Conclusion

Without a doubt, Exchange Server 2010 Service Pack 1 adds a number of interesting improvements into the product. Installation of Exchange Server 2010 SP1 is easier, and so is managing Exchange 2010 for the average SysAdmin. Finally, we have the option to configure the Personal Archives in another Mailbox Database and on another (dedicated) Mailbox Server, giving us the option to create a tiered storage solution. Overall, I think SP1 brings an interesting set of new features and additions, and rather nicely smoothes-out some of the more troublesome rough edges in the RTM product.
